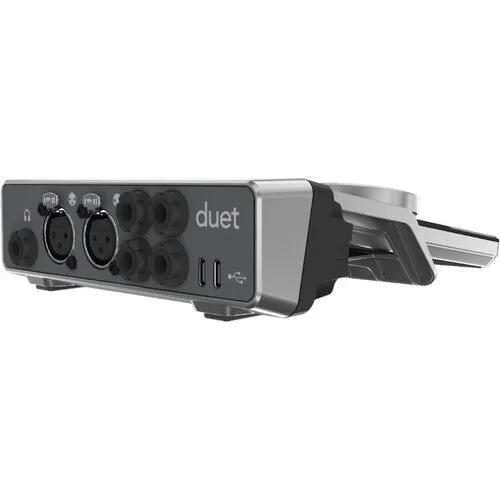

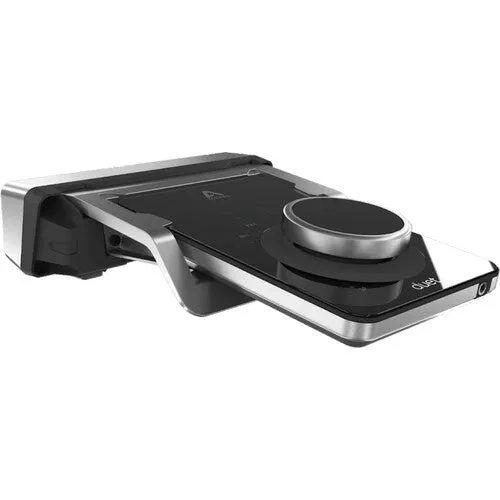

Keep your Duet 3 interface at an ergonomic angle while circumventing the need for a breakout cable with the Apogee Electronics Duet Dock, a sleek desktop docking station designed specifically for the Apogee Duet 3 ultracompact USB Type-C audio interface. Simply slide your Duet 3 into the Duet Dock to connect it; no audio breakout cable is needed because the Duet Dock has every corresponding port on its rear panel. Plus, it has a USB Type-C host port and a USB Type-C power input, just like the Duet 3 does.
Features
- Connects Directly to Duet 3 Interface
- USB Type-C Host Connectivity
- 2 XLR Inputs, 2 Hi-Z 1/4" Inputs
- 1 Headphone Out, 2 Line/Monitor Outs
- Second USB Type-C Port for Power Input
- Cradles Interface at an Ergonomic Angle
Specifications
Compatible Interfaces |
Apogee Duet 3
|
Connectivity
Analog Audio I/O |
2x 1/4" TRS Mic Input 2x XLR 3-Pin Mic/Line Input 2x 1/4" TRS Balanced Line Output 1x 1/4" TRS Headphone Output
|
Phantom Power |
48 V
|
Digital Audio I/O |
No
|
Host Connection Protocol |
USB 3.0 / 3.1/3.2 Gen 1
|
USB (Non-Host) |
No
|
Sync I/O |
No
|
Network I/O |
No
|
MIDI I/O |
No
|
Digital Audio
Sample Rates |
Up to 192 kHz
|
Bit Depths |
24-Bit
|
Sync Sources |
No
|
Packaging Info
Package Weight |
0.98 lb
|
Box Dimensions (LxWxH) |
7.8 x 7.8 x 2.6"
|
