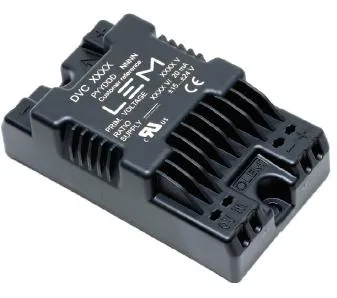

LEM DVC 1000-UI, C/L DC Voltage Transducer, 1000V, /-15..24VDC Supply, Unipolar 4-20mA Instantaneous Output, Panel Mount, or Din Rail Mount with Optional Clip
Features
- Bandwidth DC to 35kHz
- 8 Pins
- /-15..24VDC Unipolar Supply
- 4-20mA Unipolar Output
- Closed loop transducer using Hall Effect
- Compact and versatile
- Panel Mount or Din Rail Mount with Optional Clip ()
- Insulated plastic case recognized according to UL 94-V0
Advantages
- Very good linearity
- High accuracy
- Low temperature drift
- Wide frequency bandwidth
- Very low insertion losses
- High immunity to external interference
- Voltage overload capability
- Low power consumption
Applications
- AC variable speed drives and servo motor drives
- Single and Three Phase Inverters
- Static converters for DC motor drives
- Battery supplied applications
- Uninterruptible Power Supplies (UPS)
- Switched Mode Power Supplies (SMPS)
- Power supplies for welding applications
- Water Treatment Electronics
Specification
| LEM Part Number | DVC 1000-UI |
| Technology | Closed Loop Hall Effect |
| Aperture | No Aperture |
| ROHS | Yes |
| Supply Voltage | /-15..24VDC |
| Primary Nominal Voltage | /-1000V |
| Measurement Range | /-1500V |
| Output | 4-20mA Unipolar Instantaneous (0.5mA underange/21mA overrange) |
| Isolation | 4.2 kV |
| Bandwidth | DC-35 kHz |
| Mounting Style | Panel Mount or Din Rail Mount with Optional Clip () |
| Operating Temperature Range | -40°C / 85°C |
| Accuracy | 1% |
| Termination Style | Through Hole PCB |
| Unit Weight | 22g |
| Factory Pack Quantity | 25 |
