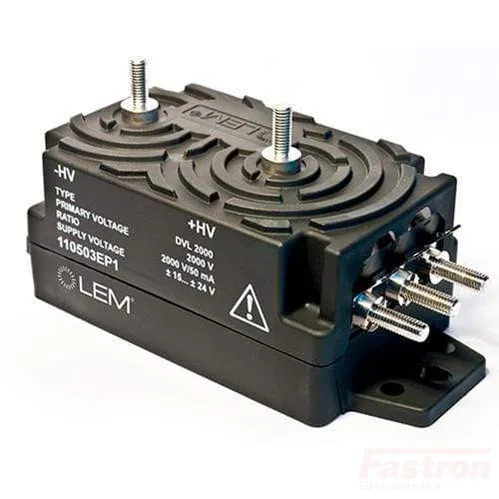

LEM DVL 2000/SP6 Digital Voltage Transducer, Vpn = 2000V, 50mA output, /-15...24VDC powered, 8.5kV Isolation, Output connection cable
Features
- Bandwidth DC to 14kHz
- Digital Transducer (ASIC based)
- Closed loop transducer using Hall effect
- Compact and versatile
- Panel Mount
- Insulated plastic case recognized according to UL 94-V0
- Output connection cable
Advantages
- Very good linearity
- High accuracy
- Low temperature drift
- Wide frequency bandwidth
- Very low insertion losses
- High immunity to external interference
- Voltage overload capability
- Low power consumption
Applications
- Railway substation or locomotive
- AC variable speed drives and servo motor drives
- Static converters for DC motor drives
- Battery supplied applications
- Uninterruptible Power Supplies (UPS)
- Switched Mode Power Supplies (SMPS)
- Power supplies for welding applications
- Water Treatment Electronics
Specification
| LEM Part Number | DVL 2000 |
| Technology | Closed Loop Hall Effect |
| Aperture | No Aperture |
| ROHS | Yes |
| Supply Voltage | /-15..24 VDC Bipolar, Isolated |
| Primary Nominal Voltage (RMS DC) | /- 2000V |
| Measurement Range | /- 3000V |
| Output | 50 mA @Vpn |
| Isolation | 8.5 kV |
| Bandwidth | DC-14 kHz |
| Mounting Style | Panel Mount |
| Operating Temperature Range | -40°C / 70°C |
| Accuracy | 1% |
| Termination Style | Output connection cable |
| Unit Weight | 270g |
| Factory Pack Quantity | 4 |
