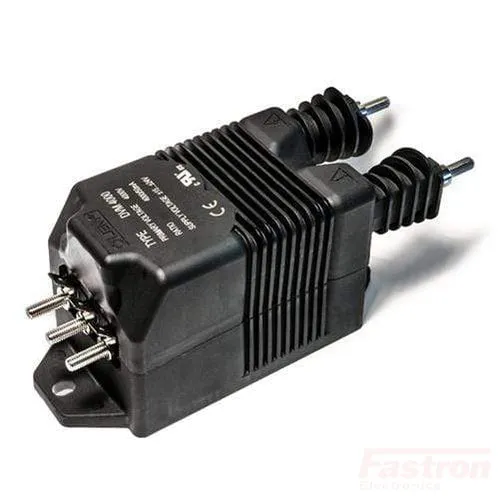

LEM DVM 1000 Digital Voltage Transducer, Vpn = 1000V, /-12...24VDC, 75mA output, 12kV Isolation
Features
- Bandwidth DC to 13kHz
- Closed loop transducer using Hall effect
- Digital Transducer
- Compact and versatile
- Panel Mount
- Insulated plastic case recognized according to UL 94-V0
Advantages
- Very good linearity
- High accuracy
- Low temperature drift
- Wide frequency bandwidth
- Very low insertion losses
- High immunity to external interference
- Voltage overload capability
- Low power consumption
Applications
- Railway substation or locomotive
- AC variable speed drives and servo motor drives
- Static converters for DC motor drives
- Battery supplied applications
- Uninterruptible Power Supplies (UPS)
- Switched Mode Power Supplies (SMPS)
- Power supplies for welding applications
- Water Treatment Electronics
- Drop in replacement for LV100-1000
Specification
| LEM Part Number | DVM 1000 |
| Technology | Closed Loop Hall Effect |
| Aperture | No Aperture |
| ROHS | Yes |
| Supply Voltage | /-15..24 VDC Bipolar, Isolated |
| Primary Nominal Voltage (RMS DC) | /- 1000V |
| Measurement Range | /- 1500V |
| Output | 75 mA @Vpn |
| Isolation | 12 kV |
| Bandwidth | DC-13 kHz |
| Mounting Style | Panel Mount |
| Operating Temperature Range | -40°C / 85°C |
| Accuracy | 1% |
| Termination Style | M5 Screw |
| Unit Weight | 375g |
| Factory Pack Quantity | 4 |
