Product Details
＋
The RadioMaster ER series of PWM receivers are based on the revolutionary ExpressLRS system. It offers high performance, high reliability, flexible configuration, fast response speed and ultra-long range bringing you brand new experience with your hobby.

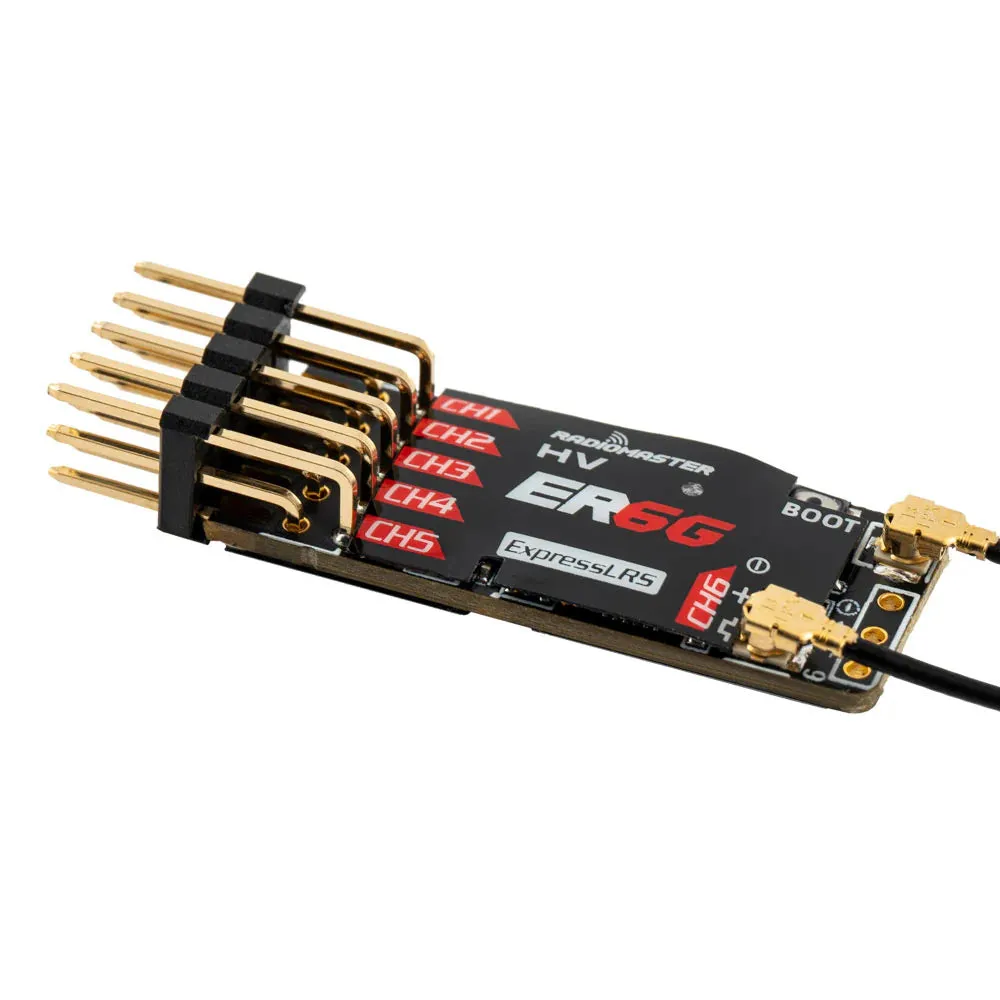

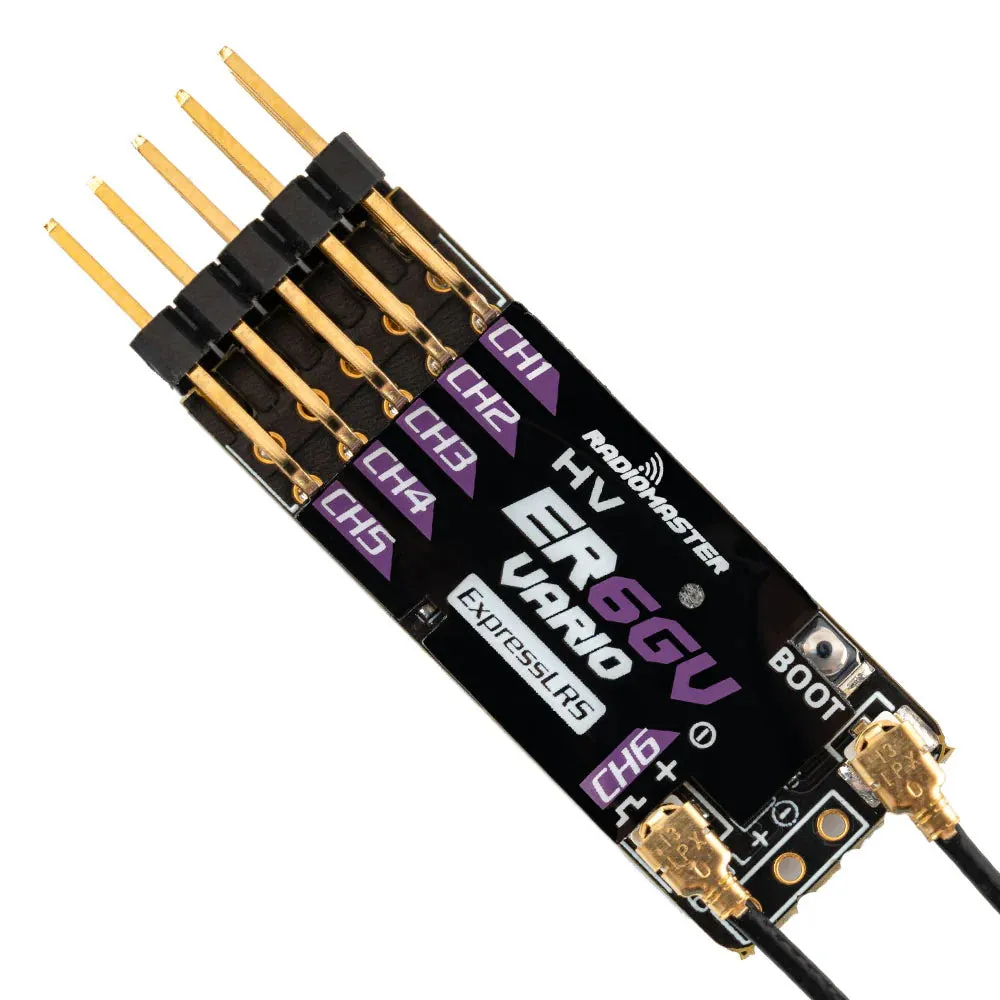

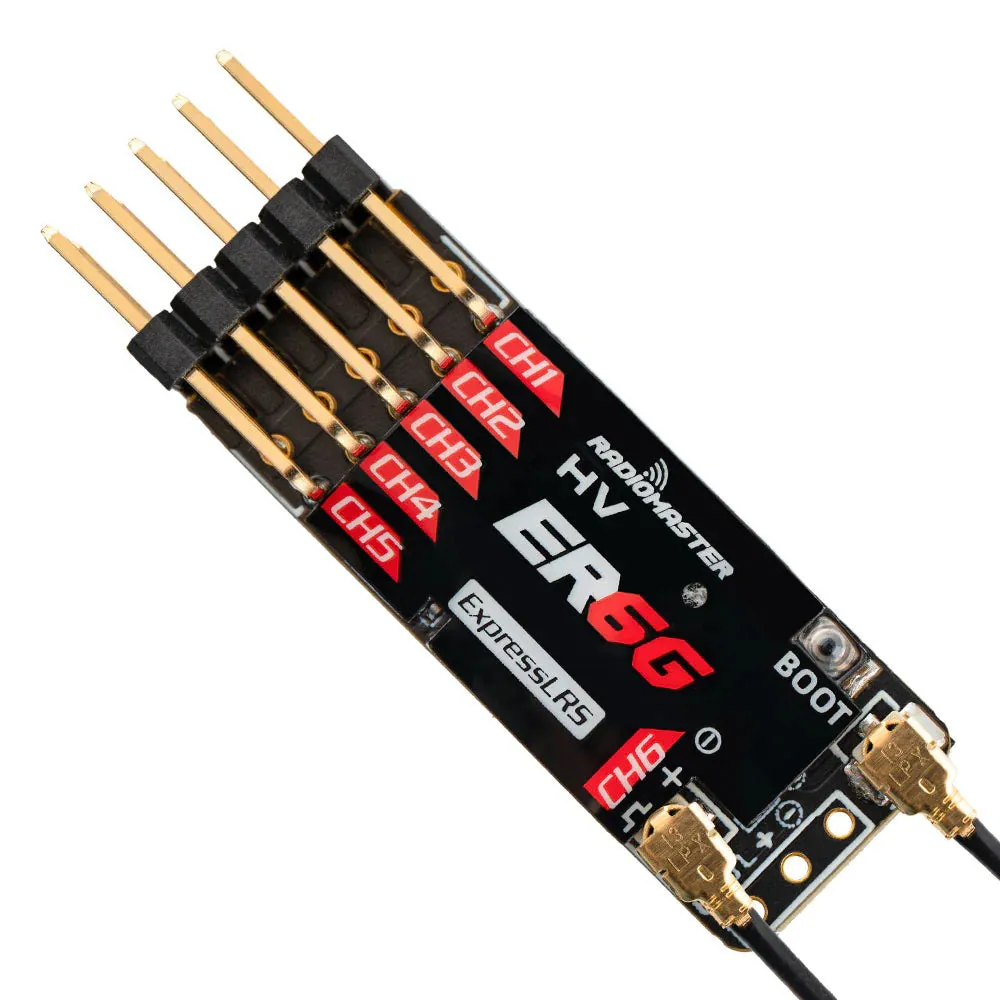

The ER6G & ER6GV receiver have been specially designed for glider pilots who require a compact and slim receiver. It can drive up to 6 servos and has built-in receiver voltage telemetry and flight battery telemetry with the ability to automatically detect which voltage input to use. Both ER6G & ER6GV feature a dual-antenna with telemetry power up to 50mw and can work stably with a 1S Lipo receiver battery.
The ER6G Receiver has the same functionality as the ER6GV only without a built in Vario for competitions that prohibit the use of a Vario or simply for users who do not need a vario on their receiver.
Features
- Based on the Revolutionary ExpressLRS System
- High performance, high reliability, flexible configuration, fast response speed and ultra-long range
- Support 6 PWM Channels
- Optimized ground up PCB design
- Automatically voltage telemetry of external battery voltage or built-in receiver voltage
- Supports Wi-Fi updates and WEBUI configuration
- High quality 2.54 mm connector
- Standard 15 cm High Sensitivity Antenna
- For fixed-wing aircraft and gliders
Specification (ER6G)
- Item: ER6G 2.4GHz ELRS PWM Receiver
- Power supply: DC 3.5 - 8.4V

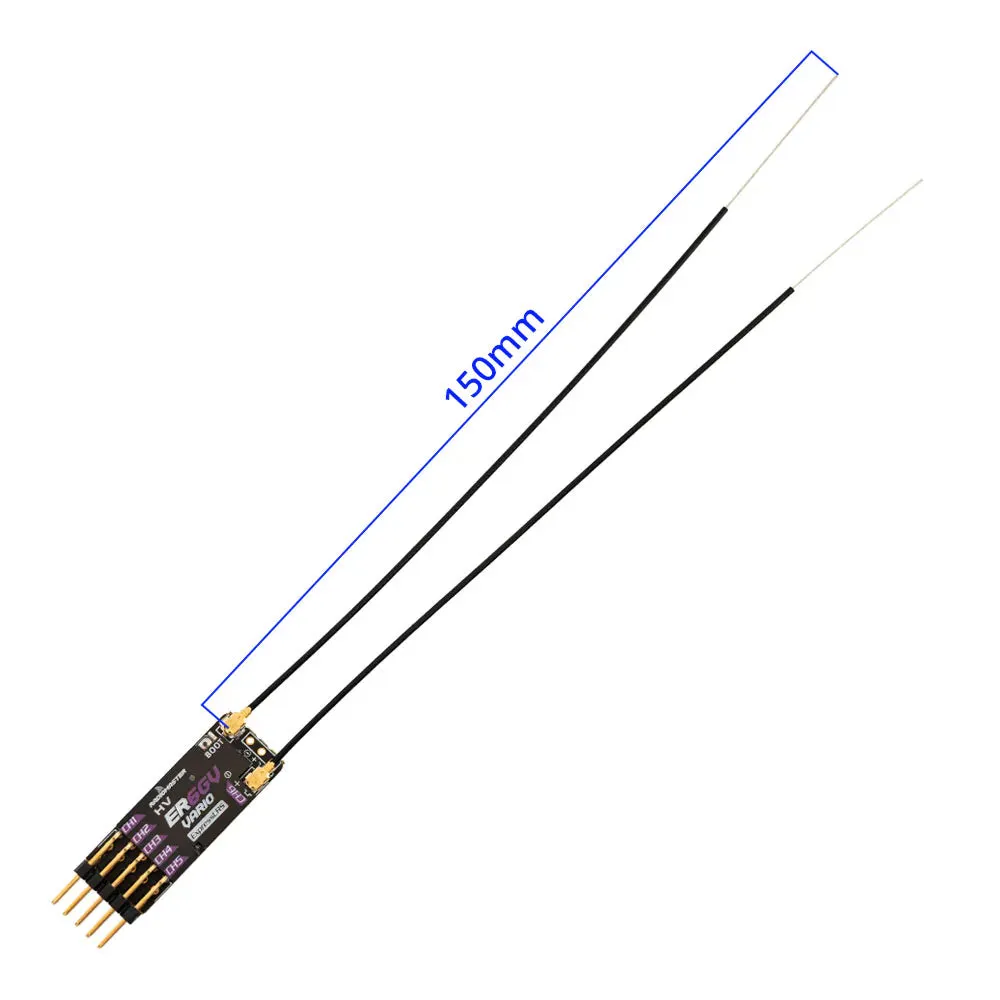

- Antenna type: 15cm high sensitivity antenna
- Wireless protocol: ExpressLRS 3.3.0 pre-installed
- Output channel: 6CH PWM
- Telemetry power: maximum 50mw (LUA Adjustable)
- Built-in high-precision air pressure sensor (Vario) GV only
- Battery voltage detection range: DC 3.0 - 26V
- Weight: 5.0 grams

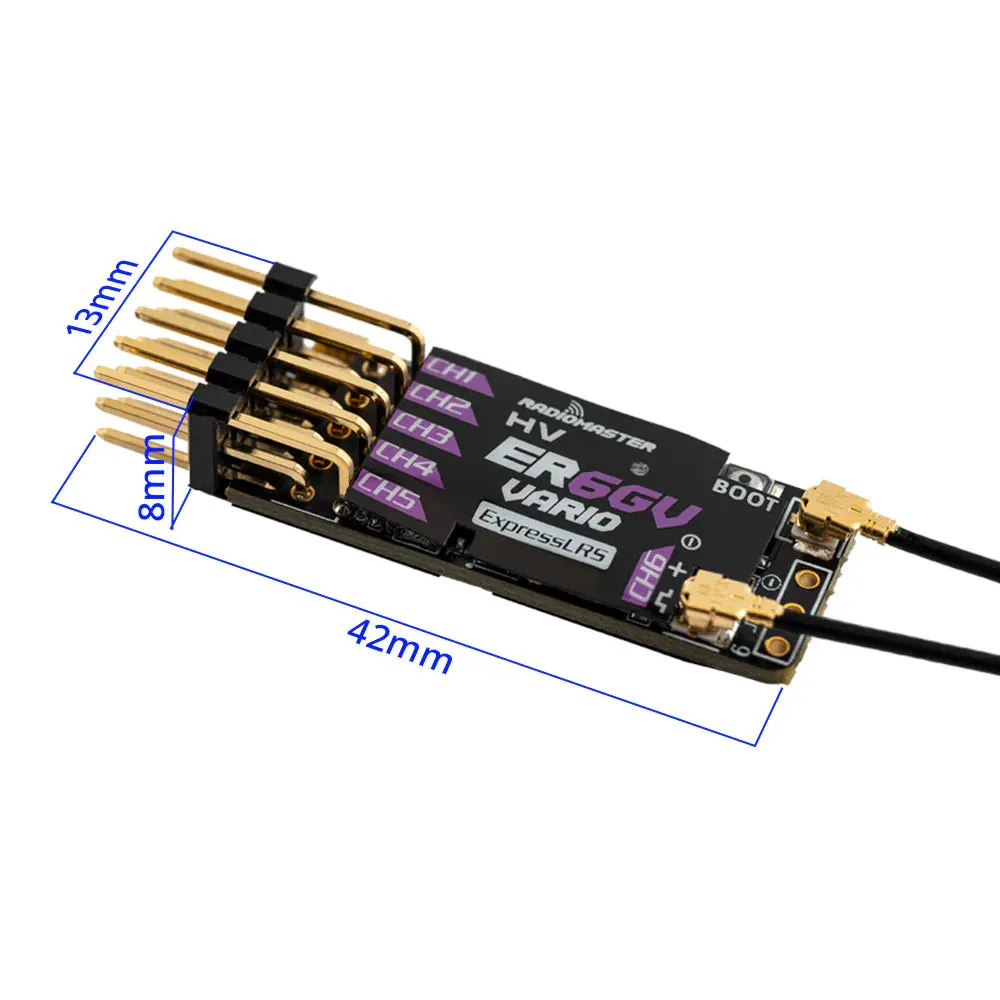

- Dimensions: 42*13*8mm
Firmware:
Device Category: Radiomaster 2.4Ghz
Device: Radiomaster ER6G
Package Includes
1 * ER6G 2.4GHz ELRS PWM Receiver
1 * Voltage telemetry wire (Type-A)
2 * Heat-shrink tube
1 * ELRS- RX- SBUS wire
1 * User Card
