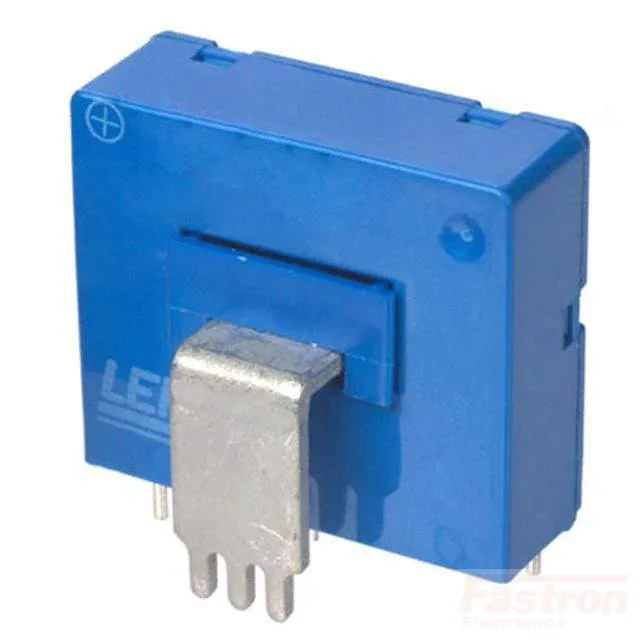

HAIS 100-TP, O/L Hall Effect Current Sensor, 100 Amp, Vref 0-5V Output, PCB Mount, no aperture, X = 1%
Features
- Bandwidth DC to 50kHz
- Open loop transducer using Hall effect
- Compact and versatile
- Panel mounting-Horizontal or Vertical
- Insulated plastic case recognized according to UL 94-V0
Advantages
- Very good linearity
- Very good accuracy
- Low temperature drift
- Wide frequency bandwidth
- Very low insertion losses
- High immunity to external interference
- Current overload capability
- Low power consumption
- Wide dynamic range, 50 to 600 A in one package.
Applications
- AC variable speed drives and servo motor drives
- Static converters for DC motor drives
- Battery supplied applications
- Uninterruptible Power Supplies (UPS)
- Switched Mode Power Supplies (SMPS)
- Power supplies for welding applications
Specification
| LEM Part Number | HAIS 100-TP |
| Technology | Open Loop Hall Effect |
| Aperture | None |
| ROHS | Yes |
| Supply Voltage | 5 VDC |
| Load Current (RMS DC) | 100 Amp |
| Overload Capability | /- 300 Amp |
| Output | 2.5 Vref |
| Isolation | 2.5kV |
| Bandwidth | DC-50 kHz |
| Mounting Style | PCB Mount |
| Operating Temperature Range | -40°C / 85°C |
| Accuracy | 1% |
| Termination Style | Molex 5045-04AG |
| Unit Weight | 30g |
| Factory Pack Quantity | 10 |
