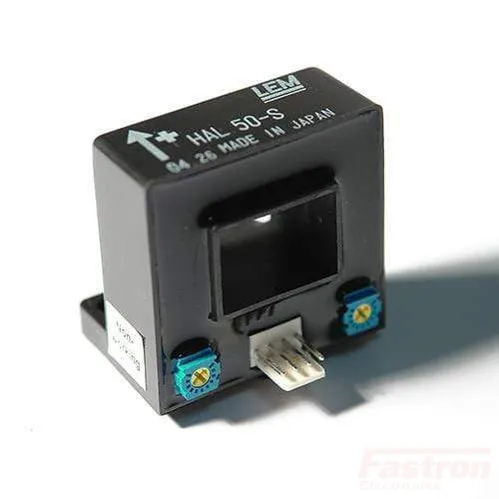

HAL 50-S O/L Hall Effect Current Sensor, 50 Amp, /-4V Output, 15x20mm sqr, X = 1%
Features
- Very good linearity
- Very good accuracy
- Low temperature drift
- Wide frequency bandwidth
- Very low insertion losses
- High immunity to external interference
- Current overload capability
- Low power consumption
Advantages
- Wide dynamic range, 50 to 600 A in one package.
- Bandwidth DC to 50kHz
- Open loop transducer using Hall effect
- Compact and versatile
- Panel mounting-Horizontal or Vertical
- Insulated plastic case recognized according to UL 94-V0
Applications
- AC variable speed drives and servo motor drives
- Static converters for DC motor drives
- Battery supplied applications
- Uninterruptible Power Supplies (UPS)
- Switched Mode Power Supplies (SMPS)
- Power supplies for welding applications
Specification
| LEM Part Number | HAL 50-S |
| Technology | Open Loop Hall Effect |
| Aperture | 20 x 15mm Square |
| ROHS | Yes |
| Supply Voltage | /-15 VDC Bipolar, Isolated |
| Load Current (RMS DC) | 50 Amp |
| Overload Capability | 30,000 Amp |
| Output | /-4 V |
| Isolation | 3 kV |
| Bandwidth | DC-50 kHz |
| Mounting Style | Panel Mount |
| Operating Temperature Range | -25°C / 85°C |
| Accuracy | 1% |
| Termination Style | Molex 5045-040A |
| Unit Weight | 75g |
| Factory Pack Quantity | 10 |
