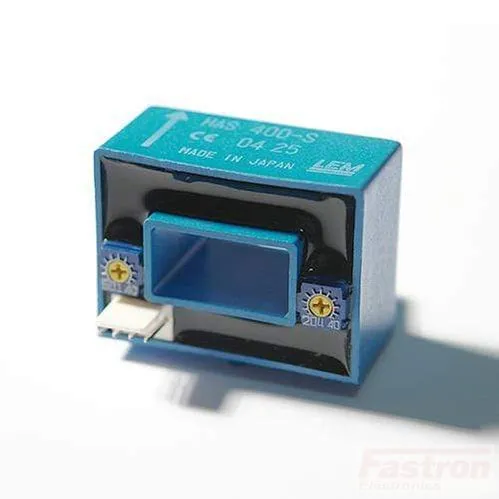

LEM HASS 200-S Series Open Loop AC/DC Hall Effect Sensor

Features

5VDC Unipolar Supply
Bandwidth DC to 50kHz
Open loop transducer using Hall effect
Compact and versatile
Panel mounting-Horizontal or Vertical
Insulated plastic case recognized according to UL 94-V0

Advantages

Very good linearity
Very good accuracy
Low temperature drift
Wide frequency bandwidth
Very low insertion losses
High immunity to external interference
Current overload capability
Low power consumption
Wide dynamic range, 50 to 600 A in one package.

Applications

AC variable speed drives and servo motor drives
Static converters for DC motor drives
Battery supplied applications
Uninterruptible Power Supplies (UPS)
Switched Mode Power Supplies (SMPS)
Power supplies for welding applications.

Specification

LEM Part Number	HASS 200-S
Technology	Open Loop Hall Effect
Aperture	20.4 x 10.4mm Square
ROHS	Yes
Supply Voltage	5 VDC
Load Current (RMS DC)	200 Amp
Measurement Range	/-900 Amp
Output	2.5 Vref
Isolation	3.3 kV
Bandwidth	DC-50 kHz
Mounting Style	Panel Mount
Operating Temperature Range	-40°C / 85°C
Accuracy	1%
Termination Style	Molex 5045-04A
Unit Weight	60g
Factory Pack Quantity	10
