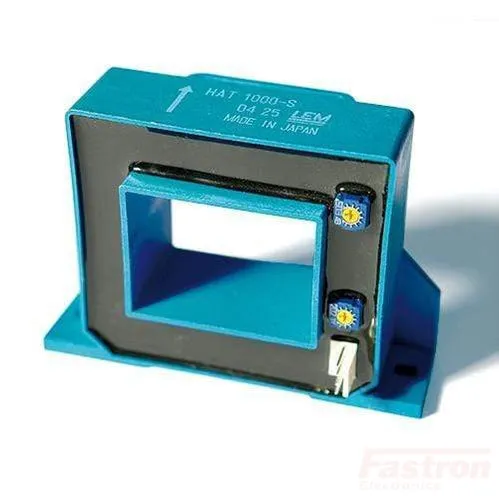

LEM HAT 1200-S O/L Hall Effect Current Transducer, 1200 Amp, /-15V Supply, 40.5 x 30.5 Square Aperture, /-4V Output
Features
- Bandwidth DC to 5kHz
- Open loop transducer using Hall effect
- Compact and versatile
- Panel mounting-Horizontal or Vertical
- Insulated plastic case recognized according to UL 94-V0
Advantages
- Very good linearity
- Very good accuracy
- Low temperature drift
- Wide frequency bandwidth
- Very low insertion losses
- High immunity to external interference
- Current overload capability
- Low power consumption
- Wide dynamic range, nominal 100 to 1500 A in one package.
- Up to 2500 A measurement range
Applications
- AC variable speed drives and servo motor drives
- Static converters for DC motor drives
- Battery supplied applications
- Uninterruptible Power Supplies (UPS)
- Switched Mode Power Supplies (SMPS)
- Power supplies for welding applications.
Specification
| LEM Part Number | HAT 1200-S |
| Technology | Open Loop Hall Effect |
| Aperture | 40.5 x 30.5mm Square |
| ROHS | Yes |
| Supply Voltage | /-15 VDC Bipolar, Isolated |
| Load Current (RMS DC) | 1200 Amp |
| Measurement Range | /-2500 Amp |
| Output | /-4 V |
| Isolation | 4.9 kV |
| Bandwidth | DC-25 kHz |
| Mounting Style | Panel Mount |
| Operating Temperature Range | -10°C / 80°C |
| Accuracy | 1% |
| Termination Style | Molex 5045-04A |
| Unit Weight | 300g |
| Factory Pack Quantity | 10 |
