Product Details
＋

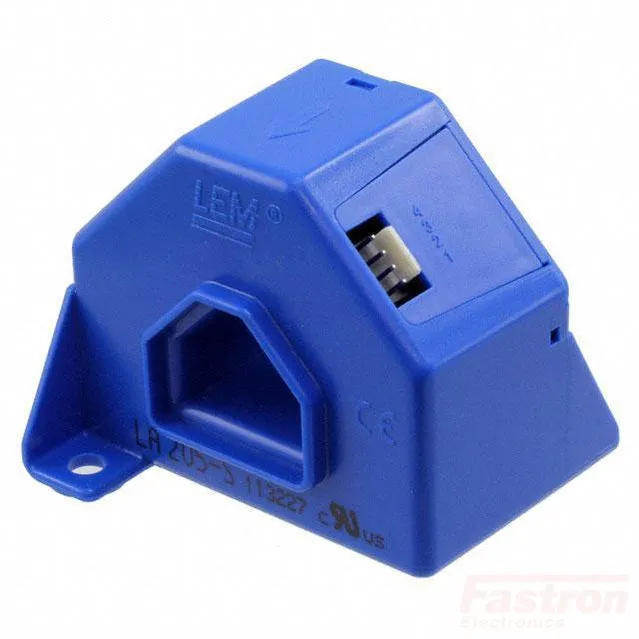

LEM LA 205-S Closed Loop AC/DC Hall Effect Sensor
Features
- Bandwidth DC to 100kHz
- Closed loop transducer using Hall effect
- Panel Mount
- Insulated plastic case recognized according to UL 94-V0
Advantages
- Very good linearity
- High accuracy
- Low temperature drift
- Wide frequency bandwidth
- Very low insertion losses
- High immunity to external interference
- Current overload capability
- Low power consumption
Applications
- AC variable speed drives and servo motor drives
- Static converters for DC motor drives
- Battery supplied applications
- Uninterruptible Power Supplies (UPS)
- Switched Mode Power Supplies (SMPS)
- Power supplies for welding applications
- Water Treatment Electronics
Specification
| LEM Part Number | LA205-S |
| Technology | Closed Loop Hall Effect |
| Aperture | 18 x 23mm |
| ROHS | Yes |
| Supply Voltage | /-12..15 VDC Bipolar, Isolated |
| Load Current (RMS DC) | 200 Amp |
| Measurement Range | /-300 Amp |
| Output | 100mA |
| Isolation | 3.25 kV |
| Bandwidth | DC-100 kHz |
| Mounting Style | Panel Mount |
| Operating Temperature Range | -10°C / 85°C |
| Accuracy | 0.8% |
| Termination Style | Molex series 5046 4 pins |
| Unit Weight | 110g |
| Factory Pack Quantity | 6 |
