ODROID-XU4 has been discontinued, consider another ODROID boards:

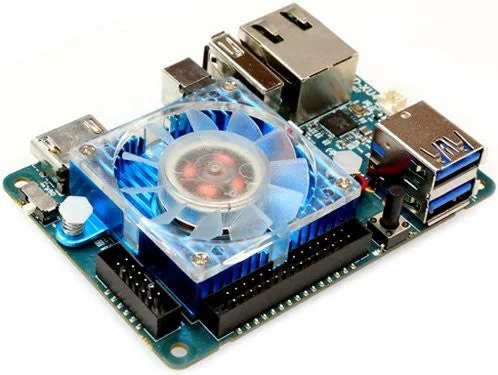

Big power in a small package! The ODROID-XU4 packs an octa-core Heterogeneous Multi-Processing ARM CPU, 2GB of high-speed RAM, 2x full-sized USB3.0 ports, Gigabit Ethernet and more into one great solution!

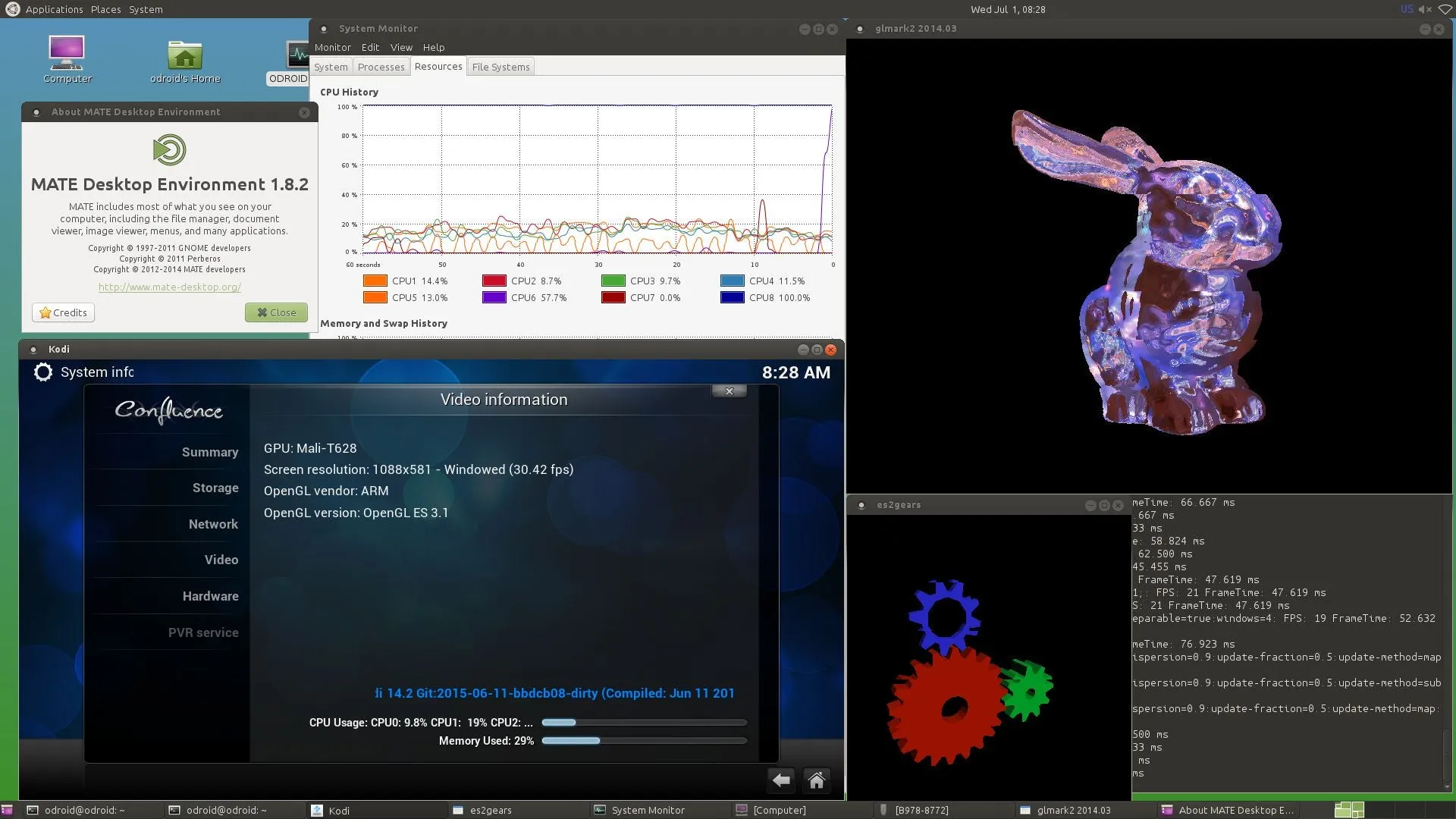

The ODROID-XU4 is a new generation of single board computer with hardware that's more powerful, more energy-efficient and has a smaller form factor! Built on open-source software, the XU4 supports various flavors of Linux including the latest Ubuntu 18.04 running MATE desktop and Android 4.4 KitKat and 5.0 Lollipop. With the high-performance combination of eMMC 5.1, USB3.0 and Gigabit Ethernet, the ODROID-XU4 boasts amazing data transfer speeds - speeds that are a necessity with many of today's computing tasks like intensive 3D applications, streaming, browsing and gaming.
Links to compliance documentation available at the bottom of this listing.
KEY FEATURES
- Samsung Exynos5422 Cortex™-A15 2Ghz and Cortex™-A7 Octa core CPUs
- Mali-T628 MP6 (OpenGL ES 3.0/2.0/1.1 and OpenCL 1.1 Full profile)
- 2GB LPDDR3 RAM PoP stacked
- eMMC5.0 HS400 Flash Storage
- 2 x USB 3.0 Host, 1 x USB 2.0 Host
- Gigabit Ethernet port
- HDMI 1.4a for display
- Operating temperature range: approx. -10C to 45C
- Size: ~82 x 58 x 22 mm (including heat sink)
- Fully software compatible with ODROID-XU3 and XU3-Lite
- Low cost, small form factor, high performance!
INCLUDES

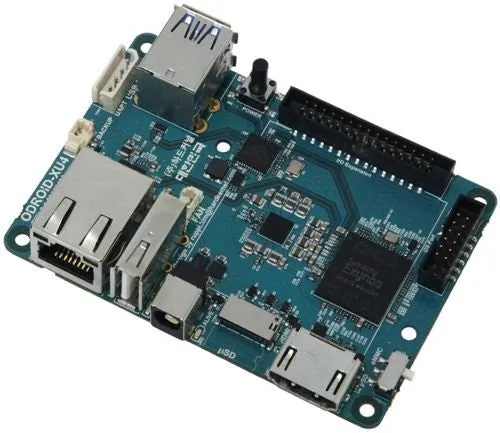

- ODROID-XU4 Board
- Active cooling fan (mounted)
REQUIRES
- microSD or eMMC module to contain the operating system
RECOMMENDED
- Power Supply
- 5V/4A with 5.5mm/2.1mm barrel
or - 5V/6A with 5.5mm/2.1mm barrel (when using an external USB3.0 HDD)
- Full-sized HDMI cable (to connect to a display)
- Keyboard/mouse
- RTC battery
- Case
LINKS
- ameriDroid Learn -
- XU4 User Manual -
- Technical Details -
- Wiki -
- Schematics -
- PCB Mechanical Drawings (AutoCAD format) -
- XU4 3D Model generated with caliper measurements (Solidworks format) -
- Official Case Design File -
- Display Resolution Compatibility Chart -
- How to change the MAC address -
COMMUNITY
- Mikronauts Preview -
- Mikronauts Review -
- CNX Software Review -
- Unlockpwd.com Review -
CERTIFICATIONS
- FCC -
- CE -
- RoHS -
- KCC -
Warranty is valid for thirty days, starting upon date of receipt.
