Name: SATA Power Cable for LattePanda Sigma
SKU: 1622430

Product Details ＋

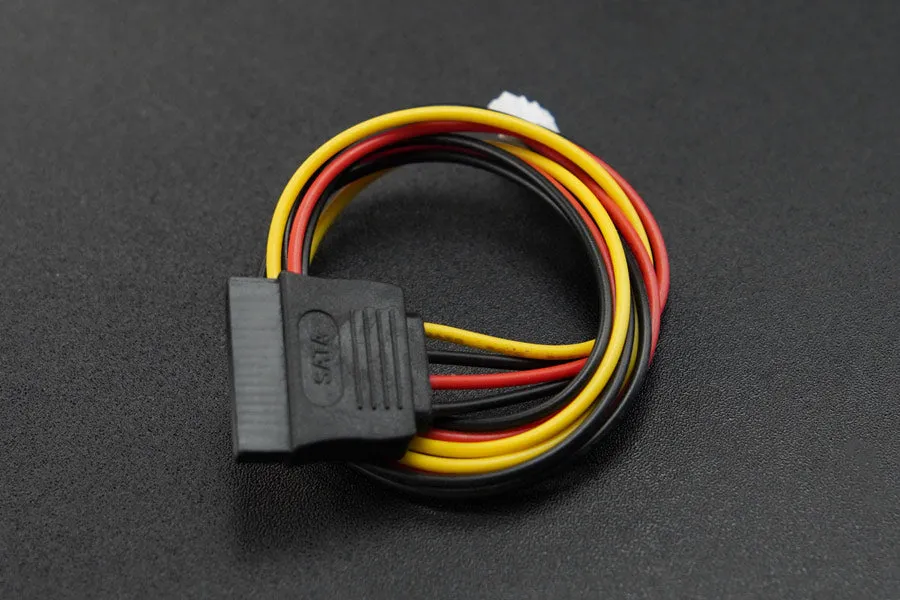

This is a power supply cable specifically designed for connecting SATA devices to the .

It features a SATA-15P female connector and a PH2.0-4P terminal, with a cable length of 40cm.

This cable can be used to supply power to SATA interface hard drives or other devices connected to the LattePanda Sigma single-board-computer.

Interface Diagram

Applications:

LattePanda Sigma Board Power Supply

Specification:

Interface: PH2.0-4P, SATA-15P female connector

Length: 40cm

Cable Colors: PH2.0 end - Yellow (12V), Black (GND), Black (GND), Red (5V); SATA end - Yellow, Black, Red, Black

Wire Gauge: 20AWG

Insulation Material: PVC insulation

Conductor Material: Pure copper

Cable Outer Diameter: OD1.8mm

SATA to PH2.0 Connection Line for LattePanda Sigma (40cm) x1
