| Product Attribute | Attribute Value |
|---|---|
| Current Rating | 80 A |
| Dimensions | 90 H x 95 W x 200 L mm |
| Filter Type | EMC/RFI |
| Hipot Rating, Line to Ground | 2750 |
| Hipot Rating, Line to Line | 2250 VDC |
| IP Rating | IP20 |
| Mounting Type | Panel Mount |
| Phase | 3 Phase |
| Primary Type | AC, Industrial |

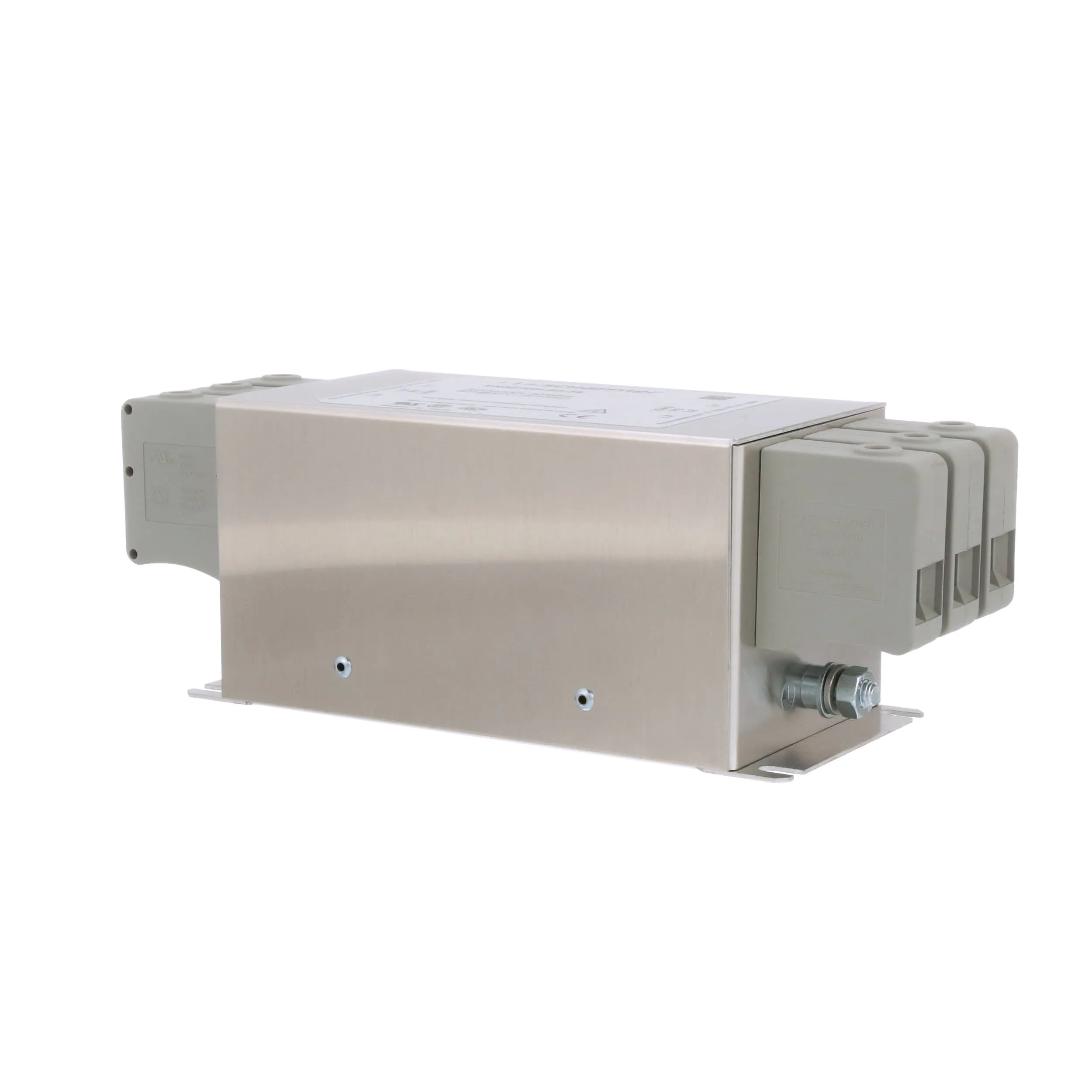

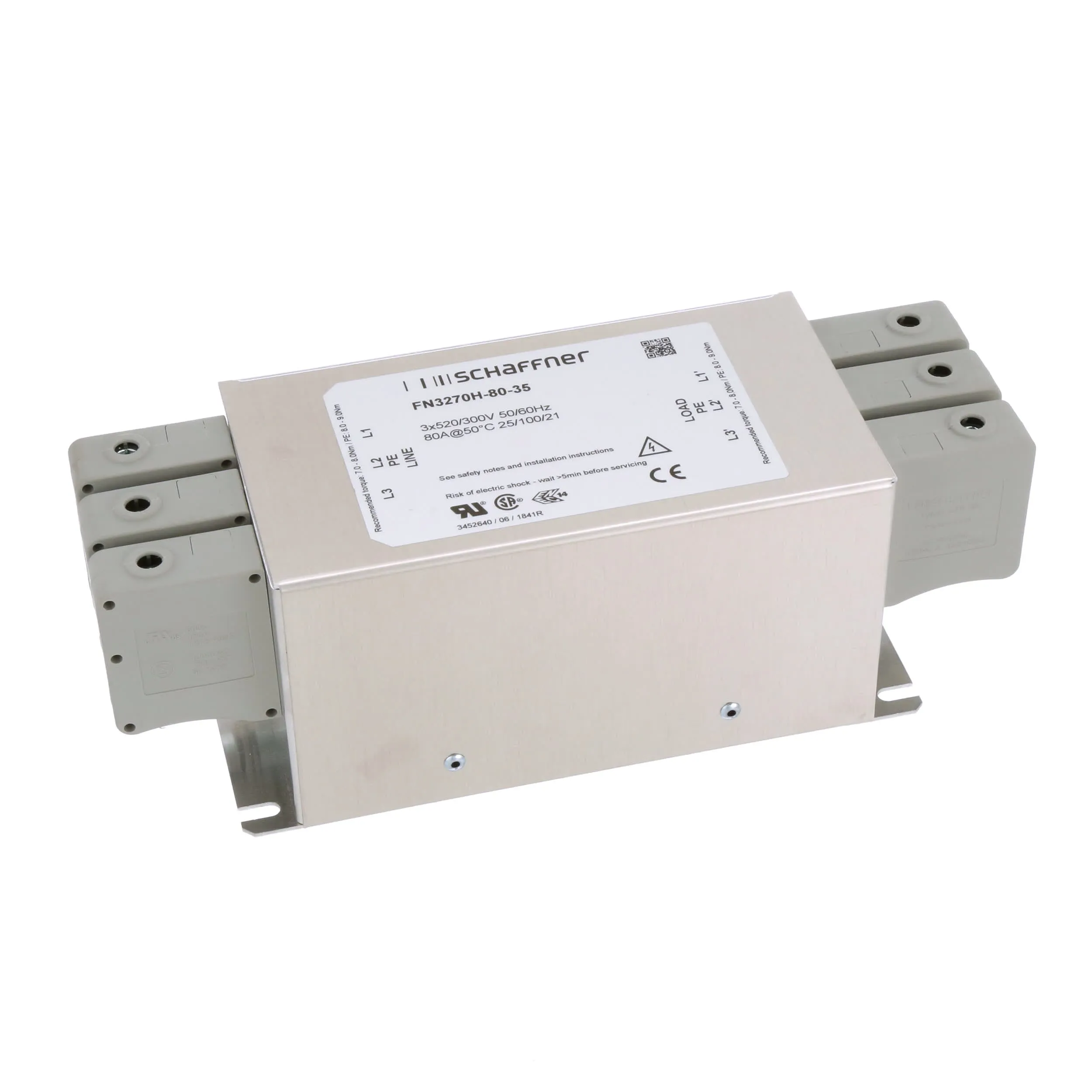

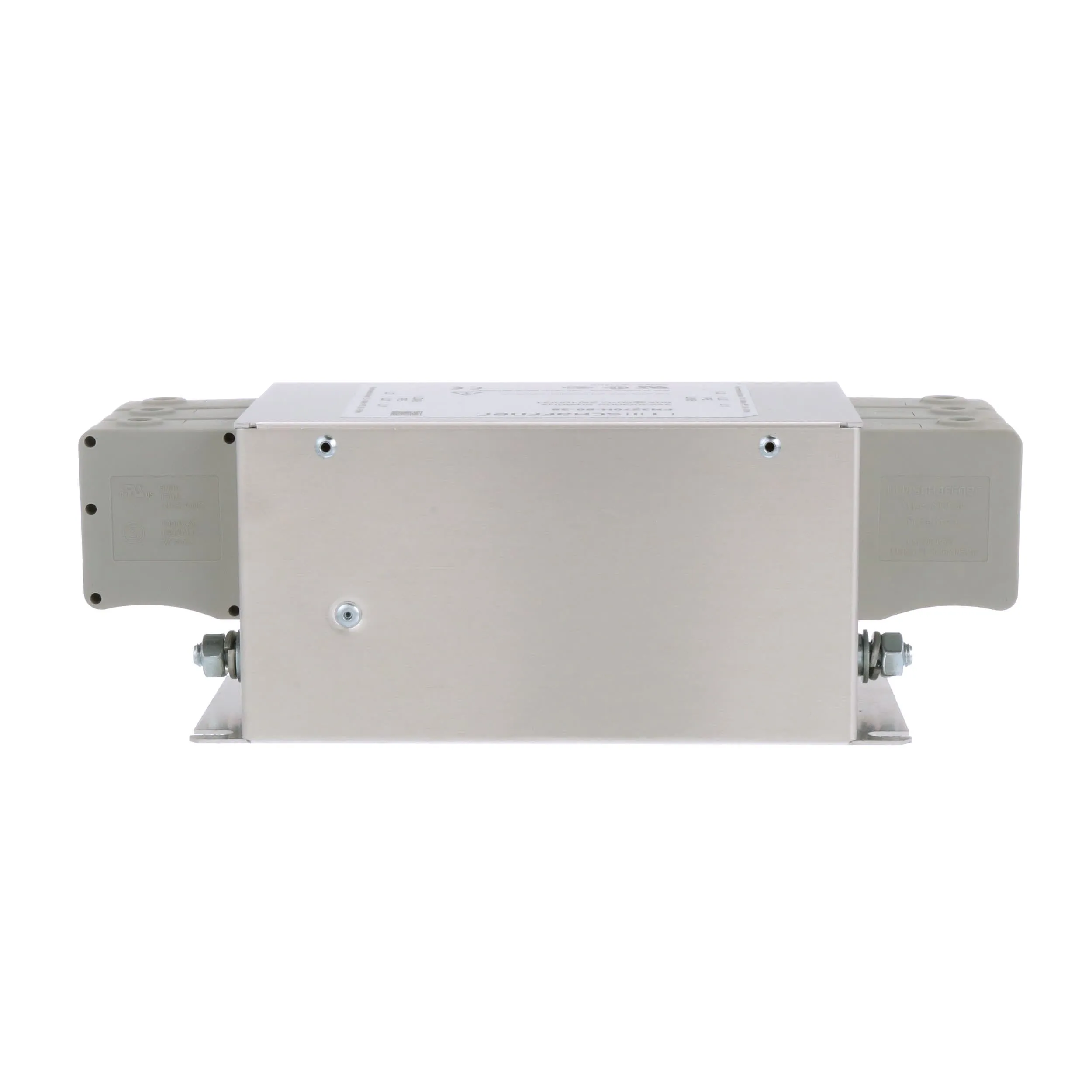

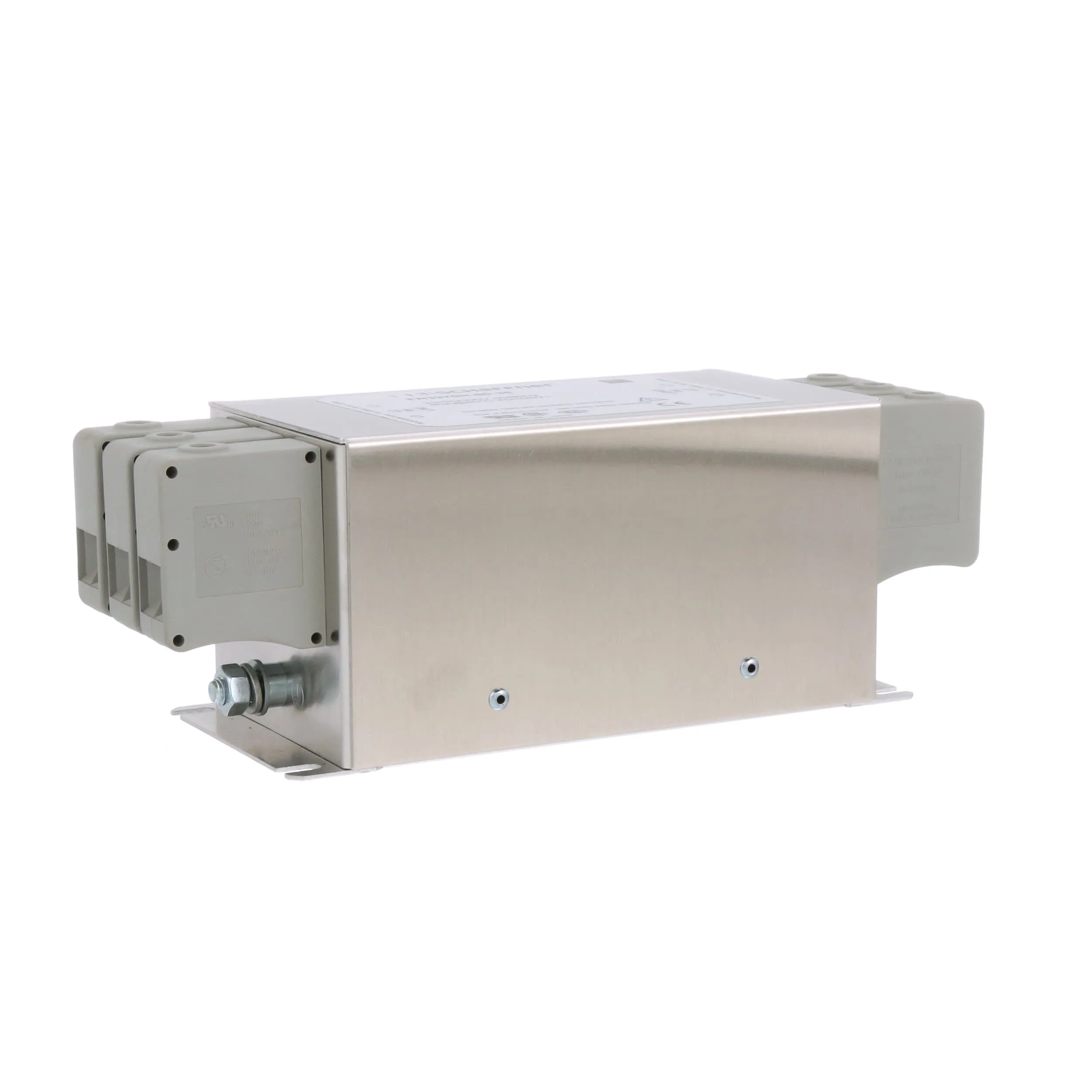

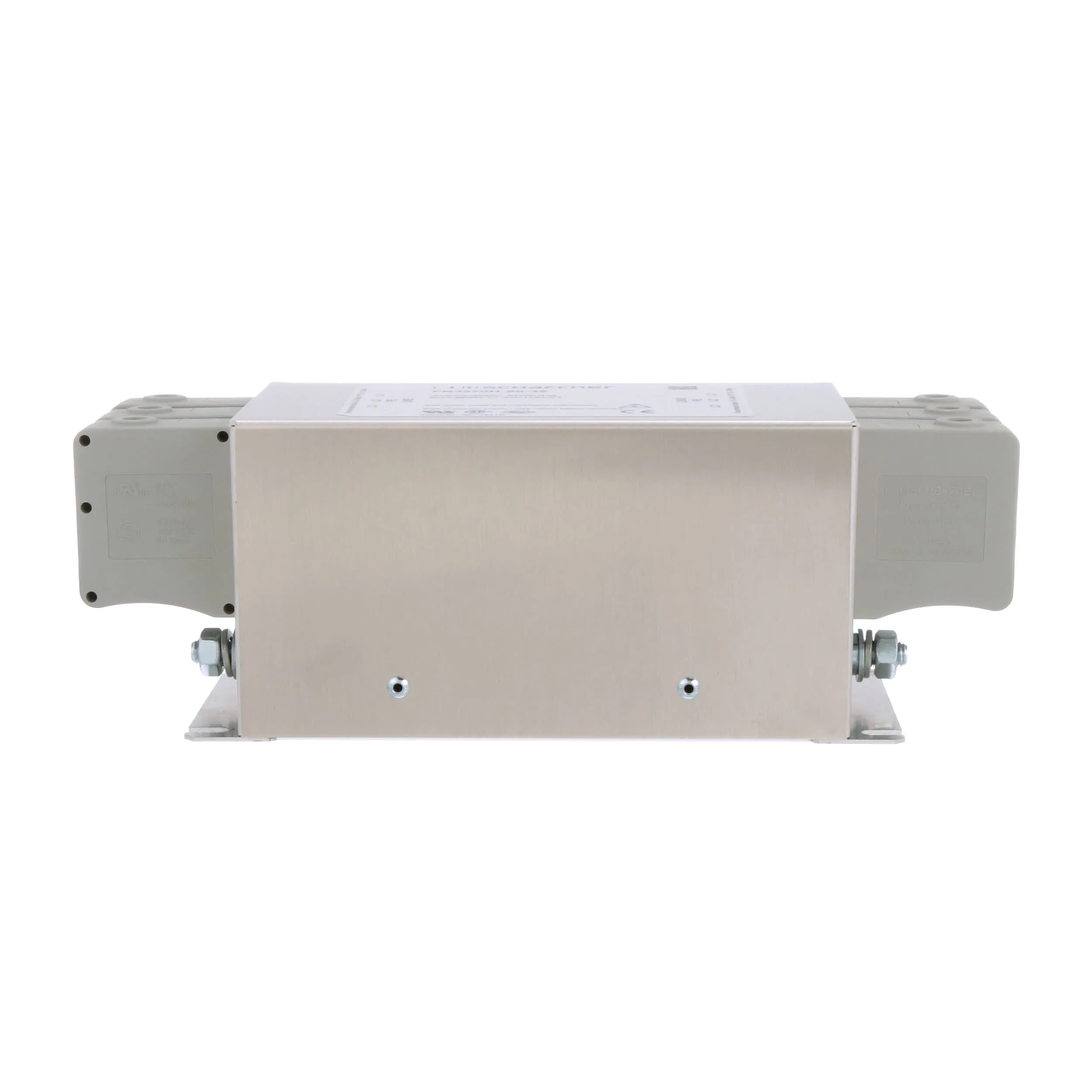

| Product Header | Compact 3-Phase EMC/RFI Filter |
| Schaffner Part Number | 800-422 |
| Series | |
| Type | Filter |
| Voltage Rating | 520 VAC |
| Voltage, Operating | 520/300 VAC |
| Wire Size | 1/0 AWG |
Overview
Schaffner FN 3270 Series — Ultra-compact EMC/RFI | 3-Phase Filter for Motor Drives Applications:
Schaffner FN 3270 Series 3-phase filters are an extremely compact and lightweight design requiring minimum mounting space in installations and cabinet installation is quick and simple – allowing for ease of access when fitting with automatic or with hand tools. Typical applications could be variable speed electrical power drive systems, motor drives for industry, frequency inverters and servomotors. PCB filters. Very compact EMI suppression components can directly be mounted on printed circuit boards of low-power office, medical, telecom and IT equipment, DC/DC converters and power supplies etc. Ideal low cost solution for manufacturers who have planned for EMC compliance throughout the equipment design process already.
Features:
Applications:
